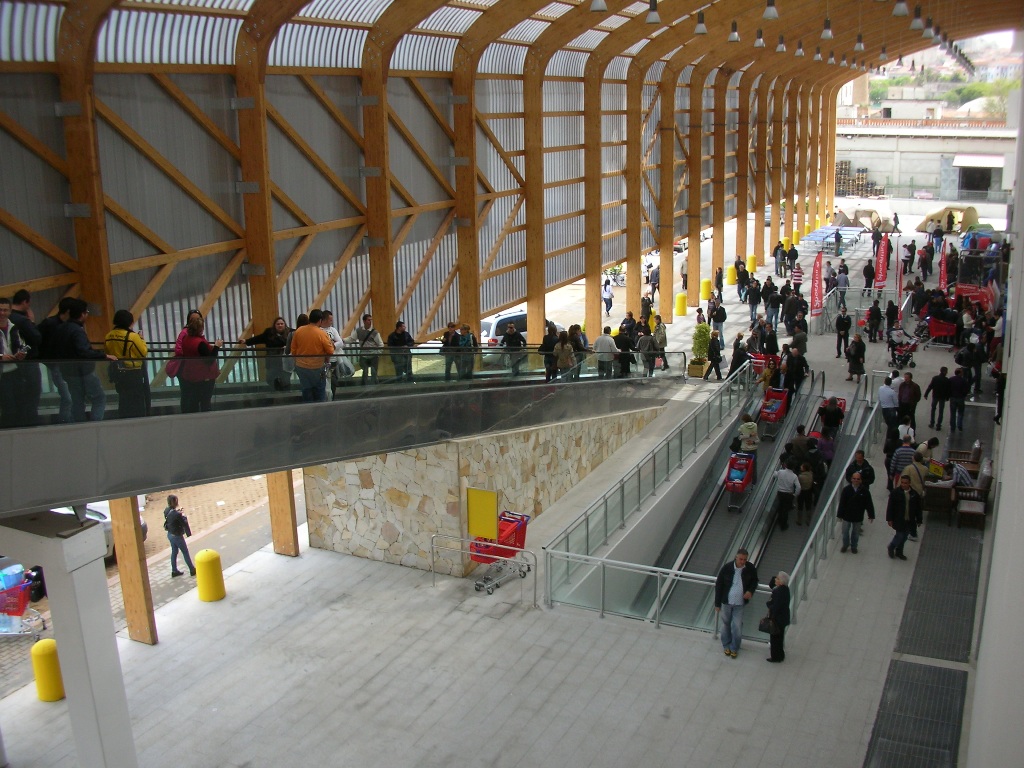

For shopping mall.

Passenger conveyor are the perfect solution at the entrance of shopping malls or to connect the underground parking to the mall floors, as ensure a continuous flow both for users and shopping trolley. We choice first quality components to ensure reliability and durability of the products for the entire life of the building. Our escalators are built according to the European standard EN115, ensuring passengers safety and and assurance for the customers.

Customization.

Techincal customization is about the start and running system: the standard is start system by key, and continuous running; the option is to install a VVVF and photocells that activate the escalators when the user cross the photoeletric barrier at entrance. The material of the handrail can be in natural rubber or polyurethane. Other customization are the material of the lateral cladding, and the lighting system.

Two pallets widths and up to 7.5 meters rise.

Pallet widths choise is between 800mm, (up to 4800 people per hour) and 1000mm (up to 6000 people per hour). If the passenger conveyor will transport also shopping trolleys, the EN115 regulation, suggest a pallet width of 1000mm, to leave a free space beyond the trolley. The maximum rise for passenger conveyors is 7.5 meter.

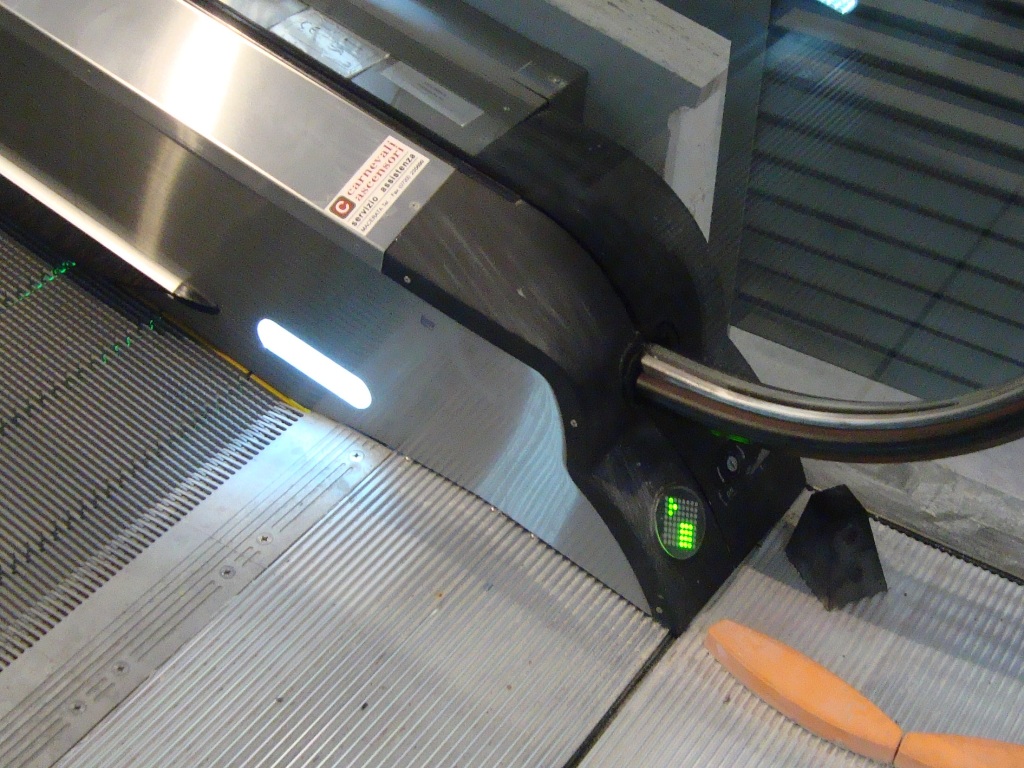

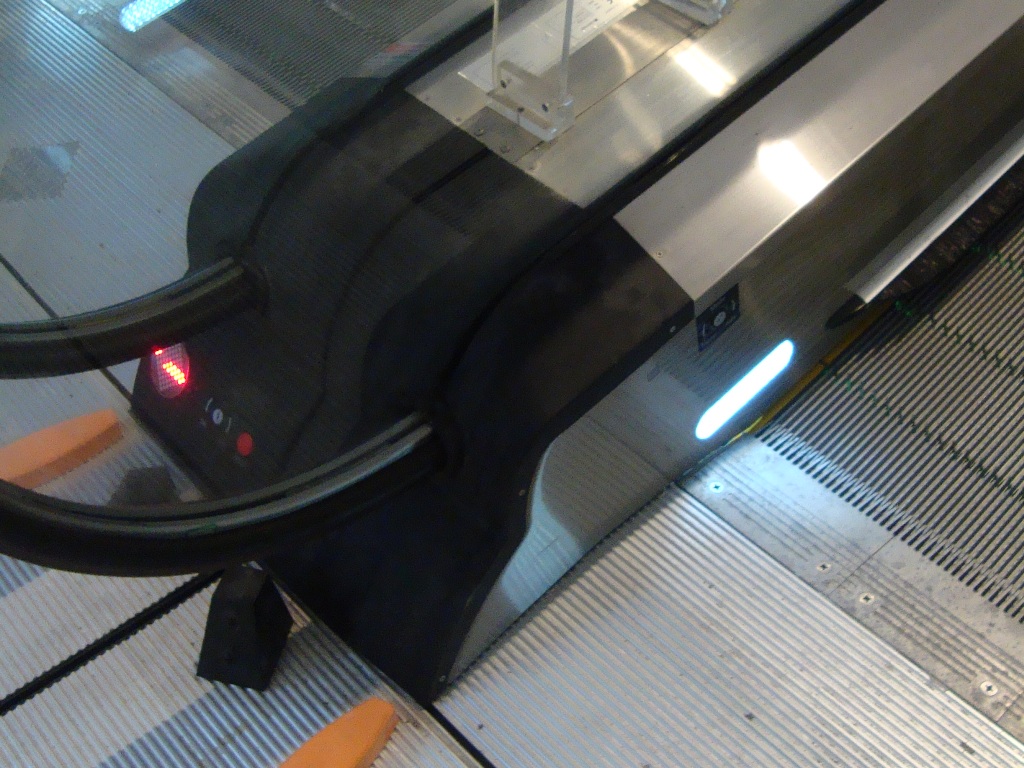

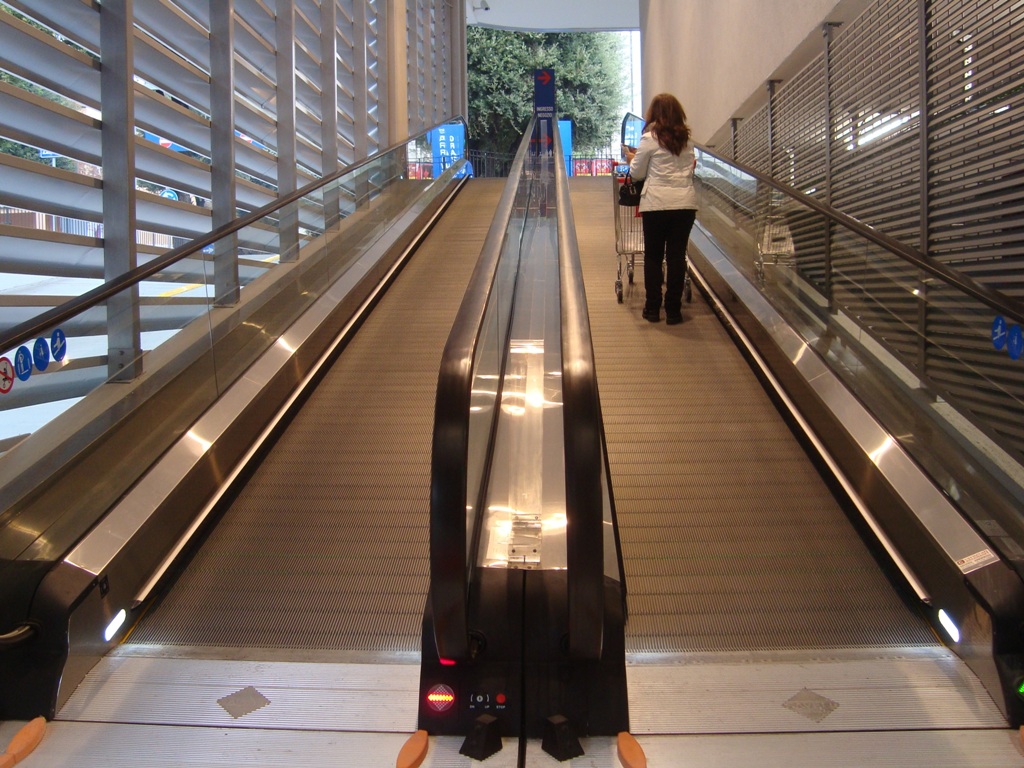

Two models: "commercial T" and "commercial F".

The most common is "commercial T" with pallets in horizonal running for 400mm only on the top. The model "commercial F" has instead pallets in horizontal running also in the bottom part, and is ideal for transport big size shopping trolleys.
